The Science Behind the Max Adaptor Leak Proof Design
Female compression fittings offer a clean and efficient approach for connecting pipes and tubing. They do away with the need for solder or welded joints. This guide delves into the function of female compression fittings, breaking down how the compression nut and ferrule create a tight seal. It also highlights their importance in both plumbing and HVAC applications.

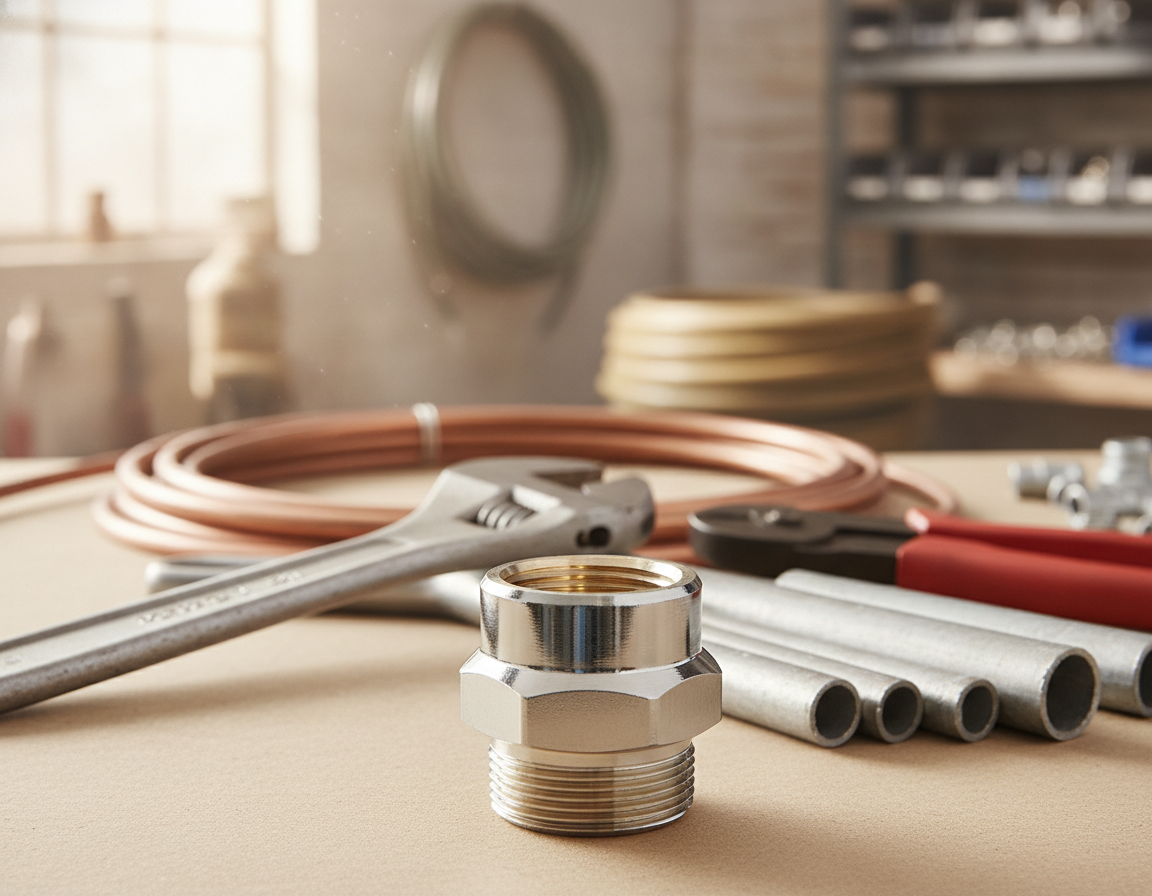

Female Compression Fitting
Using high-quality pipe fittings can significantly reduce energy losses. This also helps stop refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, need robust connections. Specifying the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is essential for long-term system performance.
Across plumbing applications, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. For different demands, refrigeration lines require fittings that can tolerate thermal fatigue and preserve a seal across a wide temperature range. InstallationPartsSupply.com and its product lines help meet these needs, stocking common sizes and parts such as ferrules and compression nuts.
Key Takeaways
- Female Compression Fitting uses a nut-and-ferrule system to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—limits corrosion and failure.
- Correct fittings lower energy loss and help stop refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com support part selection.
- Inspect ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Compression Fittings And HVAC Vs Plumbing Applications Explained
Compression fittings connect pipes and tubing without solder or welding. They are ideal for copper, PEX, PVC, and stainless lines where heat or flame is undesirable. Many professionals source parts from Installation Parts Supply to ensure consistent quality and fit.
How A Compression Fitting Works
A compression fitting relies on a nut and a ferrule olive pressed against the pipe by the fitting body. The tightening action compresses the brass ferrule or sleeve, which bites the outer pipe and forms a seal. This construction helps answer the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
Key Differences Between HVAC And Plumbing Fittings
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings usually handle potable water, wastewater, and pressure from building systems. For HVAC and plumbing fitting selection, selection depends on media, service temperature, and pressure ratings.
Systems such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbers commonly use PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Brass, Copper, Stainless Steel, PVC, And PEX Materials
Copper fittings offer excellent thermal conductivity and corrosion resistance. Brass parts, including the brass ferrule, resist wear and are common in many compression fittings. Stainless steel is suitable for corrosive or high-pressure environments.
PEX compression fittings are commonly used for domestic water lines because it tolerates freeze-thaw cycles and is flexible. PVC is commonly used as a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material Type | Typical Use | Benefits | Possible Limits |
|---|---|---|---|
| Copper | Cooling lines and drinking-water systems | Conductive, durable, solderable | Costlier with some risk of physical damage |
| Brass Material | Ferrules, nuts, and compression fittings | Easy machining and corrosion resistance | Galvanic risk with dissimilar metals |
| Stainless steel components | High-pressure or corrosive systems | Strong, durable, and resistant to corrosion | Costlier with tougher fabrication |
| PEX Tubing | Home hot-water and cold-water lines | Flexible, freeze-resistant | Must be matched with proper PEX fittings |
| PVC Pipe | Drainage and low-pressure cooling circuits | Affordable and easy to work with | Unsuitable for high heat or high pressure |
How Correct Fitting Selection Improves Efficiency And Leak Prevention
Choosing the right fitting reduces leak risk and maintains system pressure. In refrigeration circuits, a poor joint can release refrigerant and lower efficiency. Proper seals and compatible materials cut maintenance and lower energy waste.
Using correct ferrule olive type and matching copper fittings or PEX compression hardware limits the risk of galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.
Female Compression Fitting
A female compression fitting forms a seal on a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This connection provides tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Female Compression Fitting Definition And Configurations
A usual compression assembly includes a female compression nut, a ferrule olive, and the fitting body. The nut connects to the fitting body and compresses the ferrule to grip the tube. Many systems use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Materials And Compatibility
Brass and copper are typical choices for refrigerant fittings and hot-water lines due to their ability to handle thermal cycles and resist deformation. Stainless steel suits high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Plumbing, HVAC, And Instrumentation Uses
For plumbing systems, female compression fittings link stops, valves, and supply lines without solder. For HVAC systems, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Serviceable gas and instrument lines frequently use compression parts for leak-tight, serviceable connections.
Comparison With Male Compression Fittings And Adapters
Female fittings accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter enables technicians interface service valves and gauges to the system. Using correctly matched materials limits galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Assembly Part | Typical Material | Primary Use | Service Note |
|---|---|---|---|
| Female nut | Brass material | Plumbing supply lines, valve connections | Replace when rounded, cracked, or damaged |
| Ferrule olive | Brass and stainless options | Creates seal on copper, brass, some PEX | Often not reusable after compression |
| Body of fitting | Brass or stainless steel | Refrigerant service and instrumentation | Check pressure rating and media compatibility |
| Small male compression fitting | Brass or copper | Connecting small tubing to female ports | Check thread form and sealing seat |
| 3/8 service valve adapter | Brass construction | Service gauges, manifold connections | Match seals to refrigerant fittings |
| Installation Parts Supply product line | Multiple materials | Supplier for matched fitting components | Buy compatible ferrules and nuts for system longevity |
Fitting Types, Sizes, And Adapters For HVAC And Plumbing Work
This overview covers the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Technicians rely on couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Choosing these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings plus compression unions help create the creation of removable joints for maintenance and testing. Couplings are best suited to straight connections, while compression unions are helpful for components that need to be disconnected without disrupting the line. In compact systems, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Adapters and elbows make it easier to handle tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting may connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, supporting quick access on job sites.
Choosing the right size is critical, depending on the tube’s outside diameter and the ferrule and nut set. Check that the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. It’s also important to check the system’s maximum pressure and temperature ratings before making a final selection.
The Max Adaptor and 3/8 Valve Adapter are useful for connecting gauges, service ports, and small refrigerant lines. These fittings streamline the process of charging and diagnostics in HVAC systems. In HVAC, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material selection is a trade-off between durability and corrosion resistance. Stainless steel is durable and resistant to corrosion, making it suitable for harsh environments. Copper and brass suit refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX can be used in low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental impact of fittings is influenced by leak prevention and recyclability. Properly fitted metal fittings reduce refrigerant emissions and can be recycled at the end of their life. Sourcing reliable parts from reputable distributors reduces failures and minimizes long-term environmental risk.
Use the comparison below to select between common options by application, pressure, temperature, and reusability.
| Fitting Style | Usual Application | Usual Maximum Pressure | Operating Temperature Range | Reuse Potential |
|---|---|---|---|---|
| Compression coupling in brass | Small plumbing runs, instrumentation, and refrigerant lines | Up to 3,000 psi depending on specification | -65°F to 250°F | Reusable only in some cases if undamaged |
| Brass or stainless compression union | Maintenance access and serviceable joints | As high as 2,500 psi | Typical range from -65°F to 300°F | High; designed for disconnects |
| 3/8 compression connection | Small plumbing, refrigeration, and instrumentation use | Pressure rating must be verified | Check material spec for HVAC use | Moderate; often replaced during servicing |
| Small male compression fitting | Adapter for gauges and service valves | Refrigerant-rated when made and specified correctly | Works across common HVAC cycles when specified | Reusable if inspected and intact |
| Brass/stainless Max Adaptor | Service-tool connection for gauge and valve interfaces | High when designed for service-tool use | Suitable for HVAC temperature cycles | High reuse because it is service-focused |
| PEX/PVC fittings | Condensate and low-pressure water | Low; not for refrigerant | 32°F to 140°F typical | Reusable only in some applications with UV limits |
When sourcing parts, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Check that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Installation, Best Practices, And Maintenance
A reliable compression fitting installation starts with clean, square pipe ends and the right parts. When working with HVAC refrigerant lines, use copper and brass. For low-pressure condensate or chilled water, PVC or PEX is best. Always follow manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Basic compression fitting installation steps
1. First, cut and deburr the tube to a square face. 2. After that, slide the nut and ferrule onto the pipe in that order. 3. When using soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Start by hand-tightening the nut, then use the two-wrench technique to finish the joint.
Recommended tools and techniques
Use two wrenches to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. Many installers snug by hand, then add a limited number of wrench turns.
Where pipe inserts should be used
Pipe inserts are essential for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not use inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Mistakes to avoid and ferrule removal tips
Avoid tightening too little or too much. Under-tightening leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
Ferrule removal steps
Before removal, shut off supply and relieve pressure. Grip the fitting body with one wrench while loosening the nut with a second. Remove the compression nut and pull out the ferrule. If the ferrule remains tight, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
How to install a 3/8 Valve Adapter
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. Many 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Maintenance and inspection guidance
After bringing the system up to pressure, inspect joints for weeps and tighten slightly if needed. Make regular checks for corrosion and thermal fatigue, specially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Step | Task | Installer Tip |
|---|---|---|
| Preparation | Prepare a clean, square, deburred pipe end | Use a quality tubing cutter and deburring tool |
| Assemble | Slide on the nut and ferrule, then insert into the fitting | Install pipe inserts in soft plastic tubing |
| Tighten | Snug by hand before using two wrenches | Follow torque guidance from manufacturer |
| Testing | Pressurize the system and look for weeps | Watch for slow weeps; re-torque slightly if safe |
| Ongoing Service | Maintain regularly and replace used ferrules | Keep replacement parts from Installation Parts Supply nearby |
Closing Notes
Using the correct compression fitting matters for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must fit the service type. That supports reliability and extends system life. Proper parts and installation can significantly reduce energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings create a leak-free, solder-free solution. They consist of a nut, ferrule, and body. To ensure a tight seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These practices help produce long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, make sure you match size and pressure ratings to the task. Quality components from trusted suppliers are key. Installation Parts Supply guidance can help in finding compatible fittings and adapters. Ongoing checks and good part selection support system efficiency and compliance.
Overall, dedicating time to material selection and correct assembly is essential. This supports durable, leak-free connections. It supports optimal performance, fewer repairs, and less environmental harm.
