Fiber Draw Tower Performance Metrics Manufacturers Should Monitor
More than 60% of new broadband deployments in urban United States projects now call for fiber-to-the-home. That rapid shift toward full-fiber networks underscores the immediate need for dependable production equipment.
Fiber Secondary Coating Line
Fiber Coloring Machine
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) delivers automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines as well as control systems. This system turns out drop cables, indoor/outdoor cables, as well as high-density units for telecom, data centers, together with LANs.
This modern FTTH cable making machinery offers measurable business value. The line enables higher throughput as well as consistent optical performance using low attenuation. It additionally aligns with IEC 60794 as well as ITU-T G.652D / G.657 standards. Customers gain reduced labor costs together with material waste through automation. Full delivery services include installation and operator training.
This FTTH cable manufacturing line package incorporates fiber draw tower integration, a fiber secondary coating line, together with a fiber coloring machine. This system also covers SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, as well as testing stations. Control together with power specs typically employ Siemens PLC featuring HMI, operating at 380 V AC ±10% as well as modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model offers on-site commissioning by experienced engineers, remote monitoring, together with rapid troubleshooting. This system also incorporates lifetime technical support and operator training. Clients are usually asked to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Main Takeaways
- FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
The fiber optic cable production process for FTTH calls for precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This approach boosts yield and speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.
Here, we summarize the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment influences product quality, cost, and flexibility for various cable designs.
Core Components Of Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-output UV curing. Tight buffering as well as extrusion systems deliver 600–900 µm jackets for indoor and drop cables.
SZ stranding lines employ servo-controlled pay-off and take-up units to handle up to 24 fibers featuring accurate lay length. Fiber coloring machines rely on multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual together with semi-automatic modules. Lines were separate, with hand transfers and basic controls. Advanced facilities move to PLC-controlled, synchronized systems using touchscreen HMIs.
Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, and armored formats. This shift supports automated fiber optic cable production and reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during fast-cycle runs. Multi-zone temperature control using Omron PID together with precision heaters supports consistent extrusion output quality.
High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Equipment | Benefit |
|---|---|---|
| Fiber draw process | Draw tower with closed-loop tension feedback | Consistent core diameter and low attenuation |
| Fiber secondary coating | UV-curing dual-layer coaters | Even 250 µm coating that improves durability |
| Fiber coloring | Multi-channel coloring machine | Reliable color identification for field work |
| Stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Multi-zone heated energy-saving extruders | PE/PVC/LSZH jackets with tight dimensional control |
| Cable armoring | Steel tape/wire armoring units | Stronger mechanical protection for outdoor applications |
| Cooling & curing | Cooling troughs plus UV dryers | Fast profile stabilization and reduced defects |
| Testing | Inline geometry and attenuation measurement | Immediate quality verification and compliance data |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale as well as consistency.
Essential Equipment In Fiber Secondary Coating Line Operations
This secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. This line prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface output quality. That protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. This is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens together with water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-consistency single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters guide preventive maintenance together with process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable together with supports reliable fast-cycle fiber optic cable line output.
Fiber Draw Tower And Preform Processing
This fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That stage sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. It helps prevent microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. That connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Key Feature | Function | Typical Target |
|---|---|---|
| Multi-zone furnace | Consistent preform heating to stabilize glass viscosity | Consistent draw speed and refractive profile |
| Real-time diameter control | Maintain core/cladding geometry and reduce attenuation | Diameter tolerance of ±0.5 μm |
| Tension and cooling management | Protect fiber strength while preventing microbends | Defined tension by fiber type |
| Automatic pay-off integration | Smooth transfer to coating and coloring | Matched feed rates to avoid slip |
| Integrated online testing stations | Check attenuation, tensile strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |

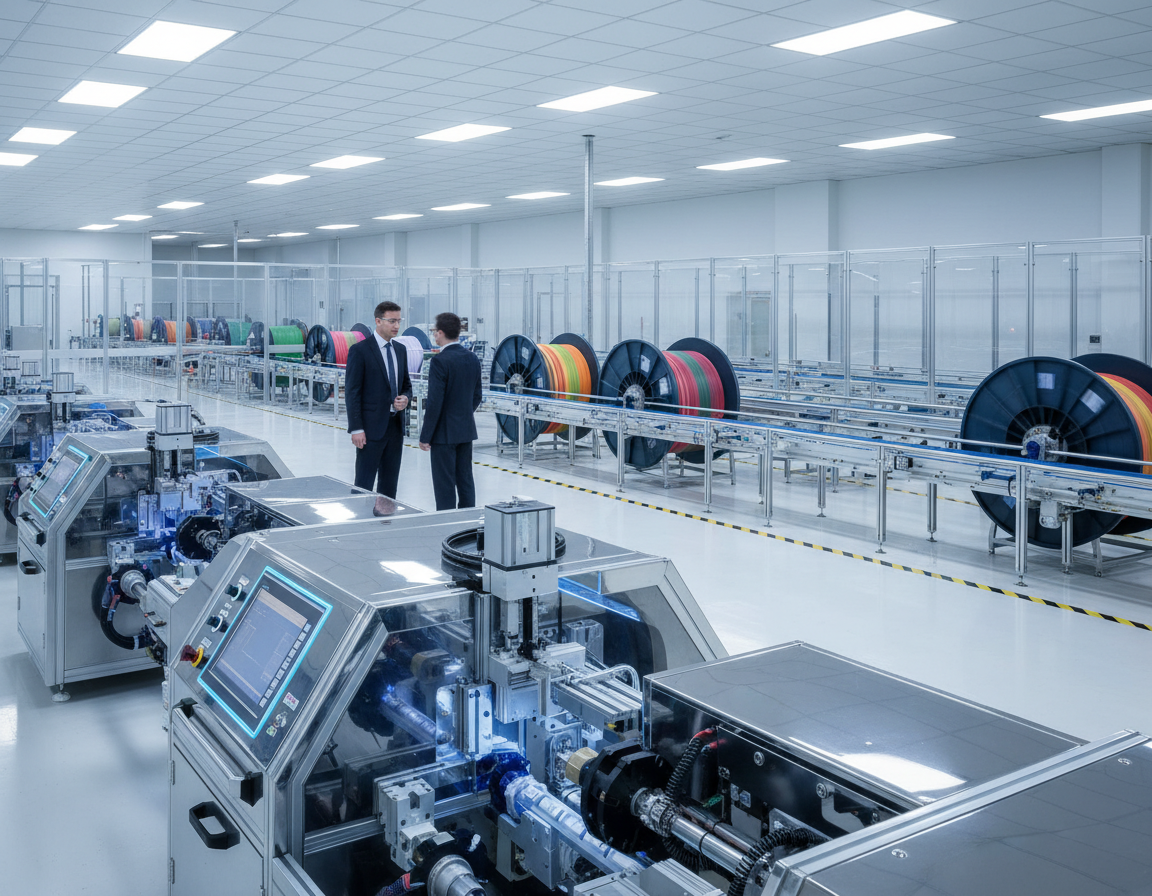

Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. This makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Current precision stranding equipment employs servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control as well as allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 together with 20 N.
Integration with a downstream fiber cable sheathing line streamlines manufacturing together with cuts handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality together with reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows together with cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring together with identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors and accelerates field work. Current equipment combines fast coloring featuring inline inspection, ensuring high throughput together with low defect rates.
Today’s high-output coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min supports color together with adhesion stability for both ribbon together with counted fibers.
Below, we discuss standards as well as coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs as well as material compatibility. Leading equipment accepts UV-curable pigments together with inks, compatible featuring common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye together with other established vendors offer customizable channels, remote diagnostics, as well as onsite training. That support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This process benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, together with aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing helps ensure long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling using SZ stranding as well as sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Such considerations reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack together with tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible featuring MPO trunking as well as high-count backbone systems.
Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Key Feature | Fiber Ribbon System | Compact Fiber System | Benefit To Data Centers |
|---|---|---|---|
| Line speed | Up to 800 m/min | Typically up to 600–800 m/min | Higher throughput for large deployments |
| Main production steps | Automated alignment, epoxy bonding, curing | Buffering, extrusion, and precision winding | Improved geometry consistency with lower insertion loss |
| Materials | Engineered tapes and bonding resins | PBT, PP, LSZH jackets and buffers | Durable performance and safety compliance |
| Inspection | Inline attenuation and geometry checks | Tension monitoring and dimensional control | Fewer field failures and quicker deployment |
| Line integration | Integrated sheathing with splice-ready stacking | Modular compact units for dense cable solutions | More efficient MPO trunk and backbone deployment |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- as well as 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 together with 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush and aging cycles. This testing regime verify performance.
Key control components include Siemens PLCs as well as Omron PID controllers. Motors from Dongguan Motor as well as inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
How Optical Fiber Drawing Meets Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable line output line manufacturers deliver turnkey layouts, remote monitoring, and operator training. Such support cuts ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
